Switching Relay J275402

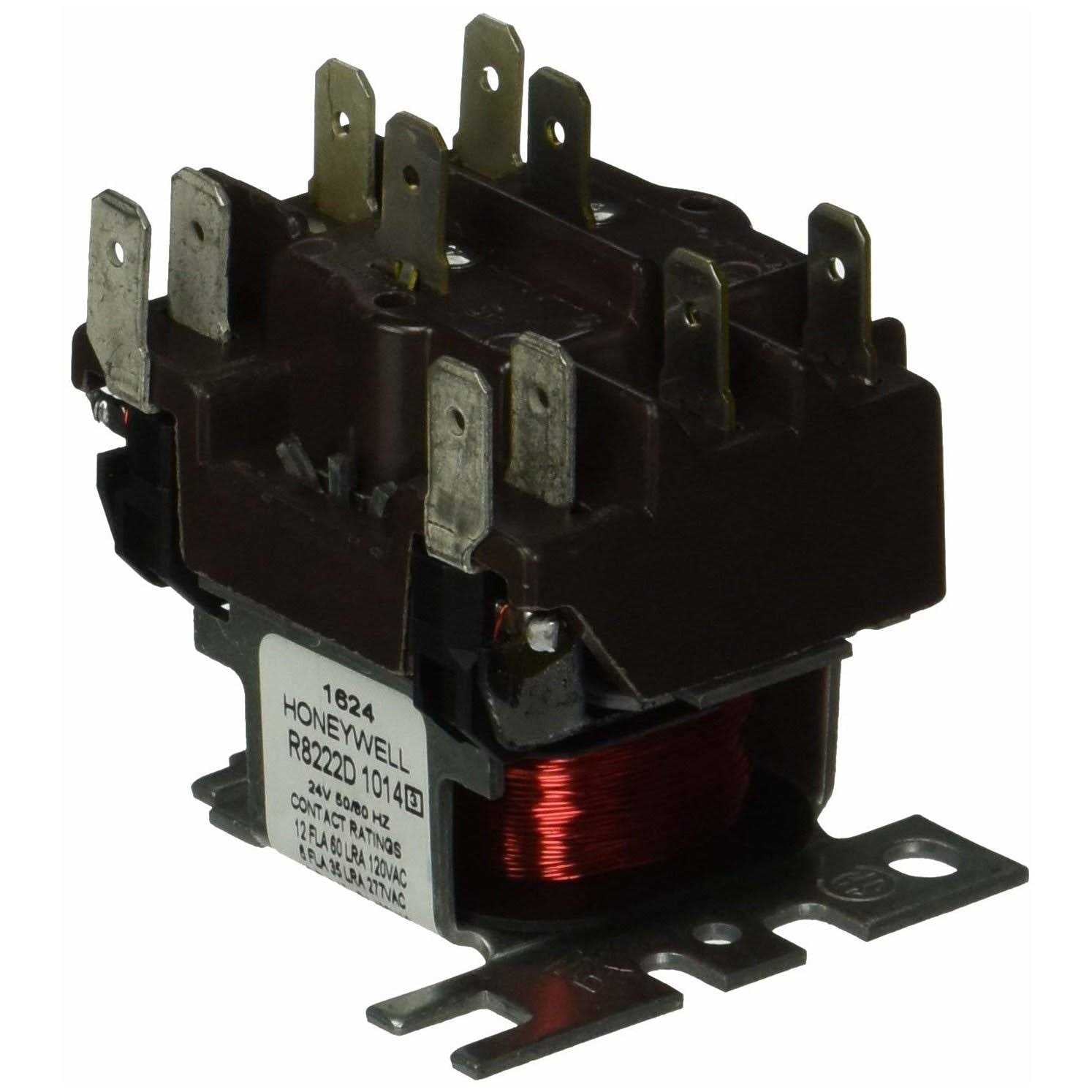

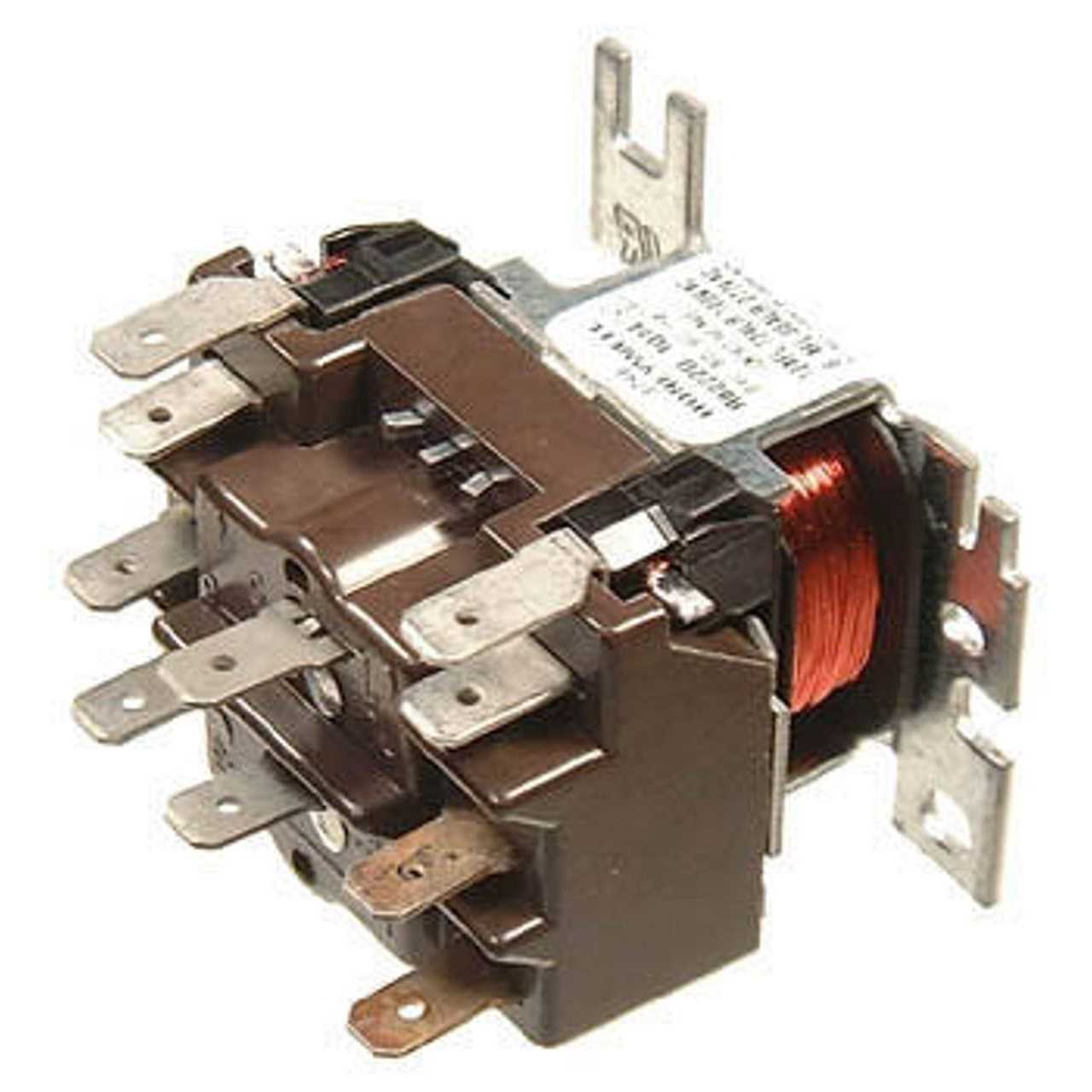

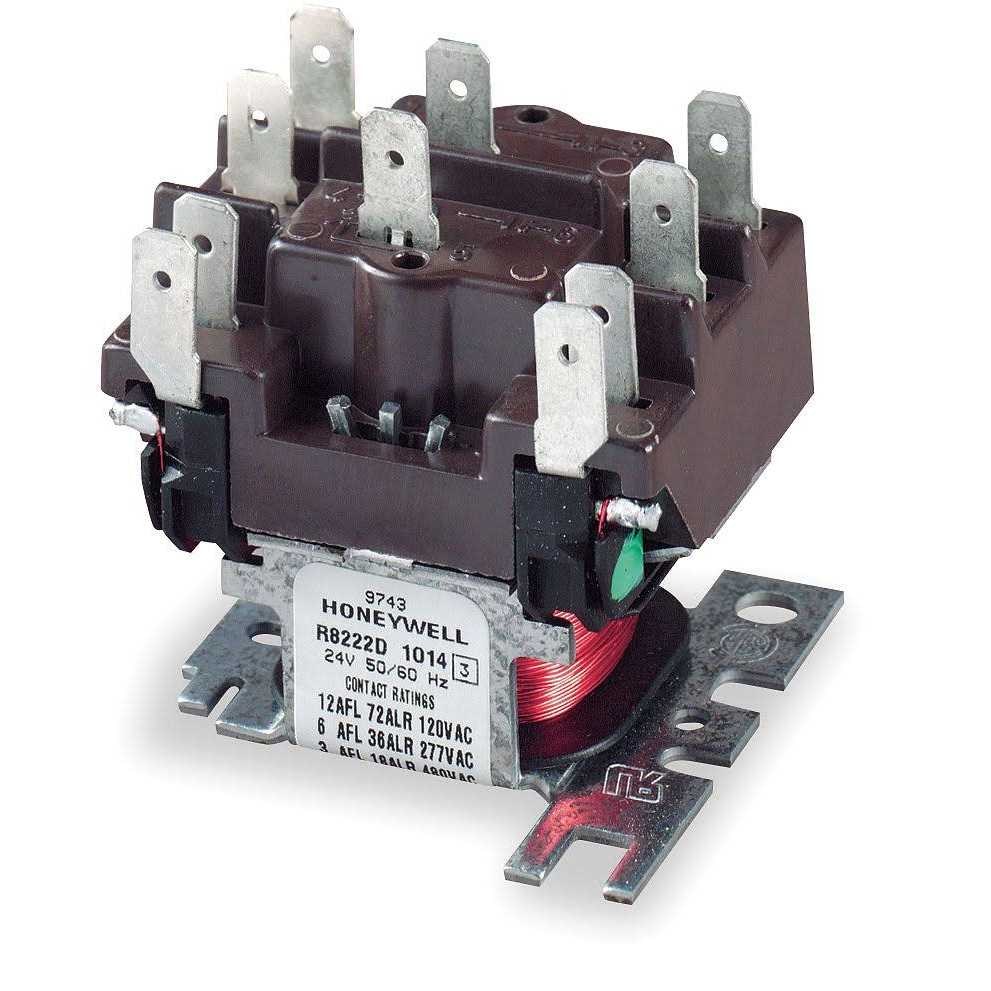

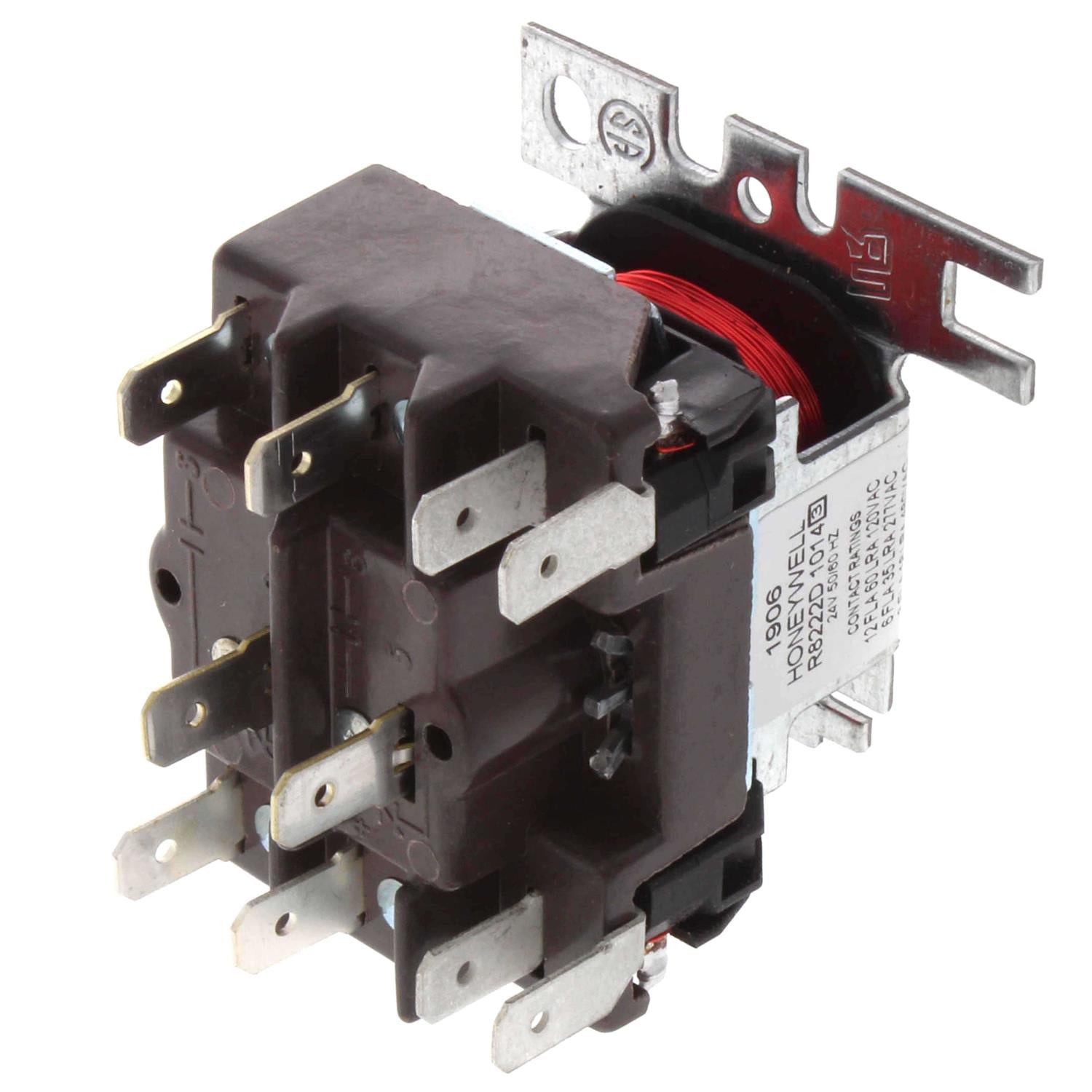

Honeywell General Purpose Relay – R8222D1014

• Molded Terminal numbers and circuit diagram on top of Relay provide easy identification for wiring and checking system operation
• Open coil assures cooler operation
• Laminated magnet construction for higher efficiency
• Base designed for easy replacement of competitive relays
• Double quick-connect coil terminals

Magnetic and transformer combination relaysmagneticac switchingspst models have combination screw/push-on terminals and permanent jumper to load except where noted. Dpst models have screw-type line and load terminals. Install in any position. Snap-acting for remote control of air conditioning, heating, and ventilation systems, and to control fans, blowers, motors up to 1-1/2 hp, tools, and other electrical devices within ratings. General purpose switching relay, coil voltage 24 vac, switch action dpdt, height 1 7/8 inches, depth 2 3/8 inches, width 2 5/32 inches.
